AC/DC POWER SUPPLIES

The SHELECTROMARINE Power Supplies, besides the classic principle of operation of power supplies that convert the alternating stabilized voltage (AC) to the desired direct voltage (DC) load, are designed in such a way to have the advantage of receiving a second input with direct voltage (DC), so that in the absence of main power will automatically switch from AC/DC to DC/DC. This is needed in vessels where the use of a backup power source (batteries) is required apart from the main supply.

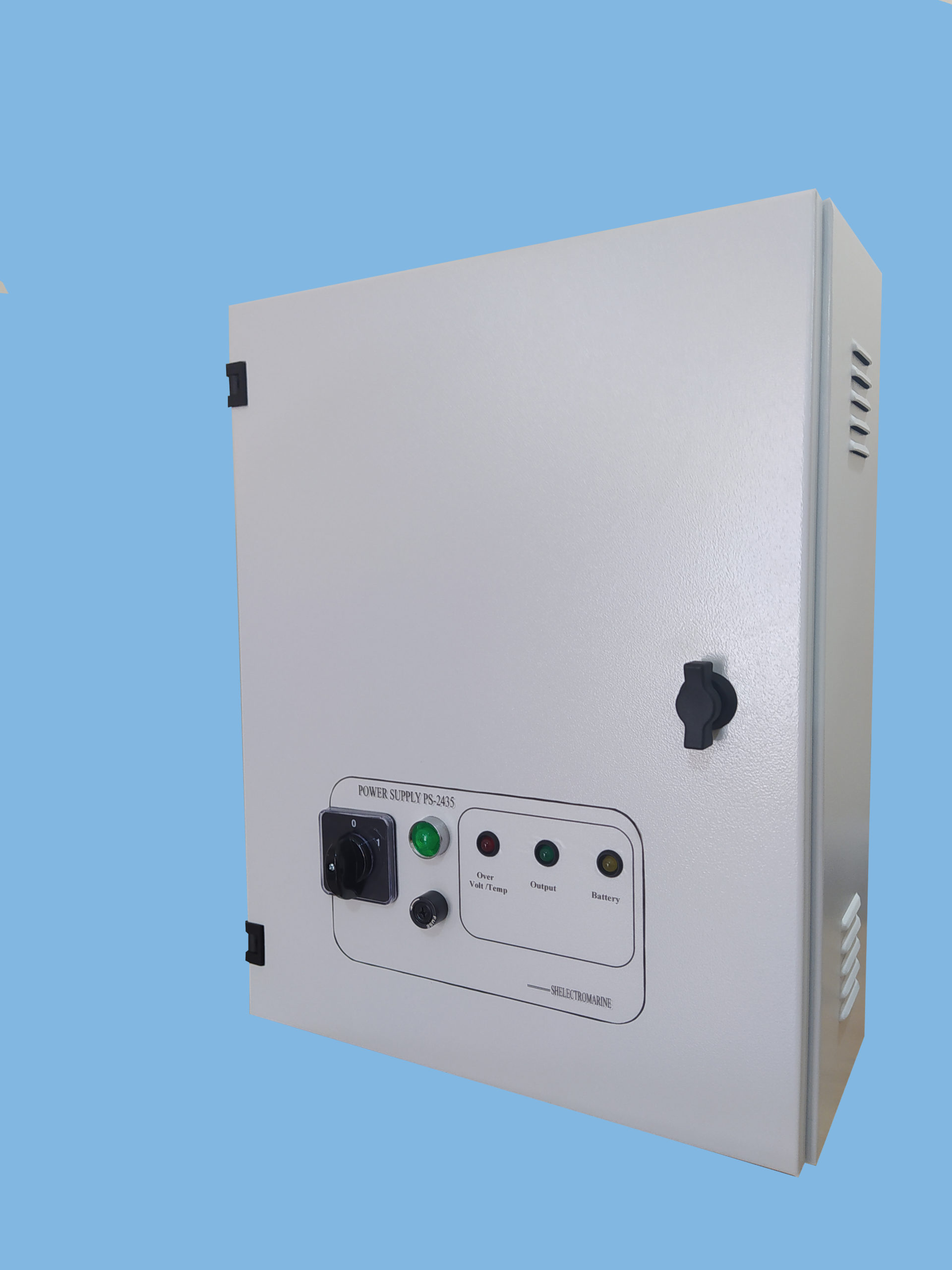

PS-2435

TECHNICAL SPECIFICATIONS

Input: 110/220 VAC (50/60Hz) & 24 VDC, Power Consumption: 850 VA, Output: 24 VDC, Output Current: 35 A

PHYSICAL SPECIFICATIONS

Dimensions: 45,2(High) – 35(length) – 16(width) (cm), Weight: 23 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

GMDSS EQUIPMENT A1, A2, A3, A4

PS-1230

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 12VDC, Power Consumption: 530 VA, Output: 13,8 VDC, Output Current: 30 A

PHYSICAL SPECIFICATIONS

Dimensions: 45(High) – 35(length) – 17(width) (cm), Weight: 21,10 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

GMDSS EQUIPMENT A1, A2, A3, A4

PS-1215

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 12 VDC, Power Consumption: 270 VA, Output: 13,8 VDC, Output Current: 15 A

PHYSICAL SPECIFICATIONS

Dimensions: 40(High) – 30(length) – 17(width) (cm), Weight: 17,20 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

GMDSS EQUIPMENT A1

PS-2415

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 24 VDC, Power Consumption: 425 VA, Output: 24 VDC, Output Current: 15 A

PHYSICAL SPECIFICATIONS

Dimensions: 40(length) – 31,5(width) – 16,3(high) (cm), Weight: 17,20 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

GMDSS EQUIPMENT A1

PS-2406/10

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 24 VDC, Power Consumption: 150 W, Output: 24 VDC, Output Current: 10 A

PHYSICAL SPECIFICATIONS

Dimensions: 12(High) – 26(length) – 30(width) (cm), Weight: 3,6 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

A1 GMDSS / INMARSAT-C

PS-2406 with Alarm Unit

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 24 VDC, Power Consumption: 150 W, Output: 24 VDC, Output Current: 6 A

PHYSICAL SPECIFICATIONS

Dimensions: 12(High) – 26(length) – 30(width) (cm), Weight: 3,6 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection

APPLICATIONS

A.I.S.

PS-2410

TECHNICAL SPECIFICATIONS

Input: 110/220 VAC (50/60Hz), Power Consumption: 240 W, Output: 24 VDC, Output Current: 10 A

PHYSICAL SPECIFICATIONS

Dimensions: 12(High) – 26(length) – 30(width) (cm), Weight: 3,6 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection



PS-1212

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz), Power Consumption: 150 W, Output: 12 VDC, Output Current: 12 A

PHYSICAL SPECIFICATIONS

Dimensions: 12(High) – 26(length) – 30(width) (cm), Weight: 3,6 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Overheating Protection



PS-2412

TECHNICAL SPECIFICATIONS

Input: 110/220VAC (50/60Hz) & 24 VDC, Power Consumption: 150 W, Output: 12 VDC, Output Current: 12 A

PHYSICAL SPECIFICATIONS

Dimensions: 13(High) – 26(length) – 32(width) (cm), Weight: 4,4 kg

PROTECTIONS (DC)

a) DC Output Overvoltage Protection, b) DC Output Overcurrent Protection c) Short-Circuit Protection

APPLICATIONS

GMDSS EQUIPMENT A1
